AUTOMOTIVE ELECTRONIC PRODUCTS
The side-step lamp to assembly in Australia jeep car,
so that is the export automotive electronics product,
1set = 2pcs PCB, and use white color LED.
The heighten break & signal lamp add together,
nowaday so many car use this design >> e.g. Japanese,
German & Korea car.
The front signal lamp is use for German &
Japanese car.
The control module to control the break & signal lamp.
The front signal lamp and add the back housing.
The front signal lamp include PCB.
If you use PCB and LED and control properly design your
PCB color / material maybe we can skip this reflector,
percentage till 90%.
The front signal lamp complete set exclude wire.
The side-step courtesy lamp to assembly in 4 side doors,
and use the white LED.
The PCB for side-step courtesy lamp.
All the automotive projects for our design experience.
Aircon switch - we use the vero board to try the function
some like mechanic switch (mechanic switch change to
electronics switch). It can be longer life.
Test the FA testing for BIB 72hrs. It will done and so stable
than mechanic switch.

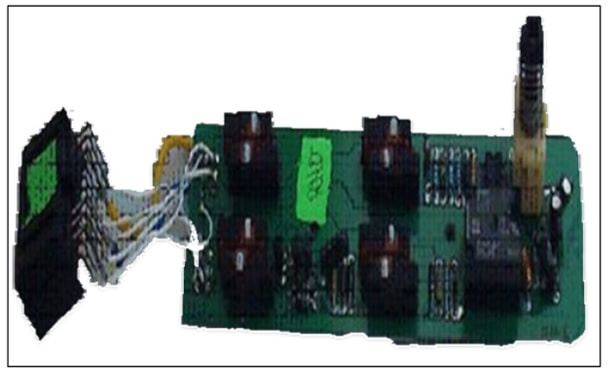

That is years 1992 ~ 2000 power window for Malaysia market. It run 13.5A.
That is year 2003 new version.

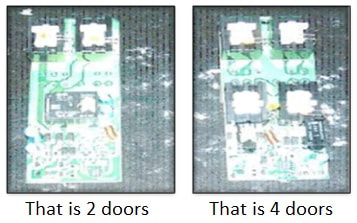

Power window for 2door and 4door.
It runs 13.5A driver side and also adds in auto
up/down function.
The new technologies Automotive lighting.
The projects is using High Power LED & Aluminium PCB.
As we know High Power LED is very hot, so must using
AL material.
Advantage: long life, brightness, stable, design choosing,
new generation technologies.
The 2004 new car version. Central switch, it
controls the air-con function. The PCB is 2layers
high amp board. That is top side (component side).
The cover for the 2004 new car version. Central
switch.
That is the bottom side PCB, the circuit all need
to cal. How big we need to control, because the
PCB is running out the High Amp.
